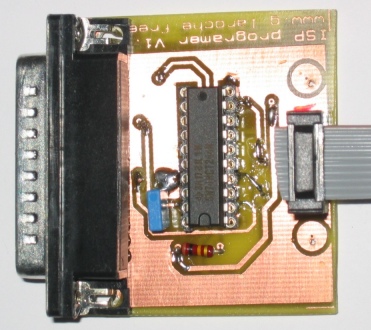

Board diagram and overview

This board can program an AVR microcontroler ATMEL (ATmega8, ATMega32, ...) from a parallel printer LPT1 using ISP functionality In System Programming.

This programming type can program and/or configure microcontroler directly on the target board without rmoving device and put it on a separate programmer.

This board is compatible with programming software "PonyProg".

Click on reactive zone of following picture for more information(connectors, adjust,...)































Connector of PC parallel port DB25 male:	ISP connector HE10:
2 D0 3 D1 4 D2 5 D3 6 D4 7 D5 9 D7 10 /ACK 11 BUSY 12 PAPER OUT 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND	MOSI 1 2 +5V Not Used 3 4 GND RESET 5 6 GND SCK 7 8 GND MISO 9 10 GND



Diagram and board are available in a zip file for KiCAD:

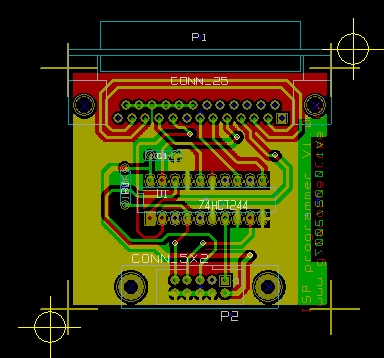

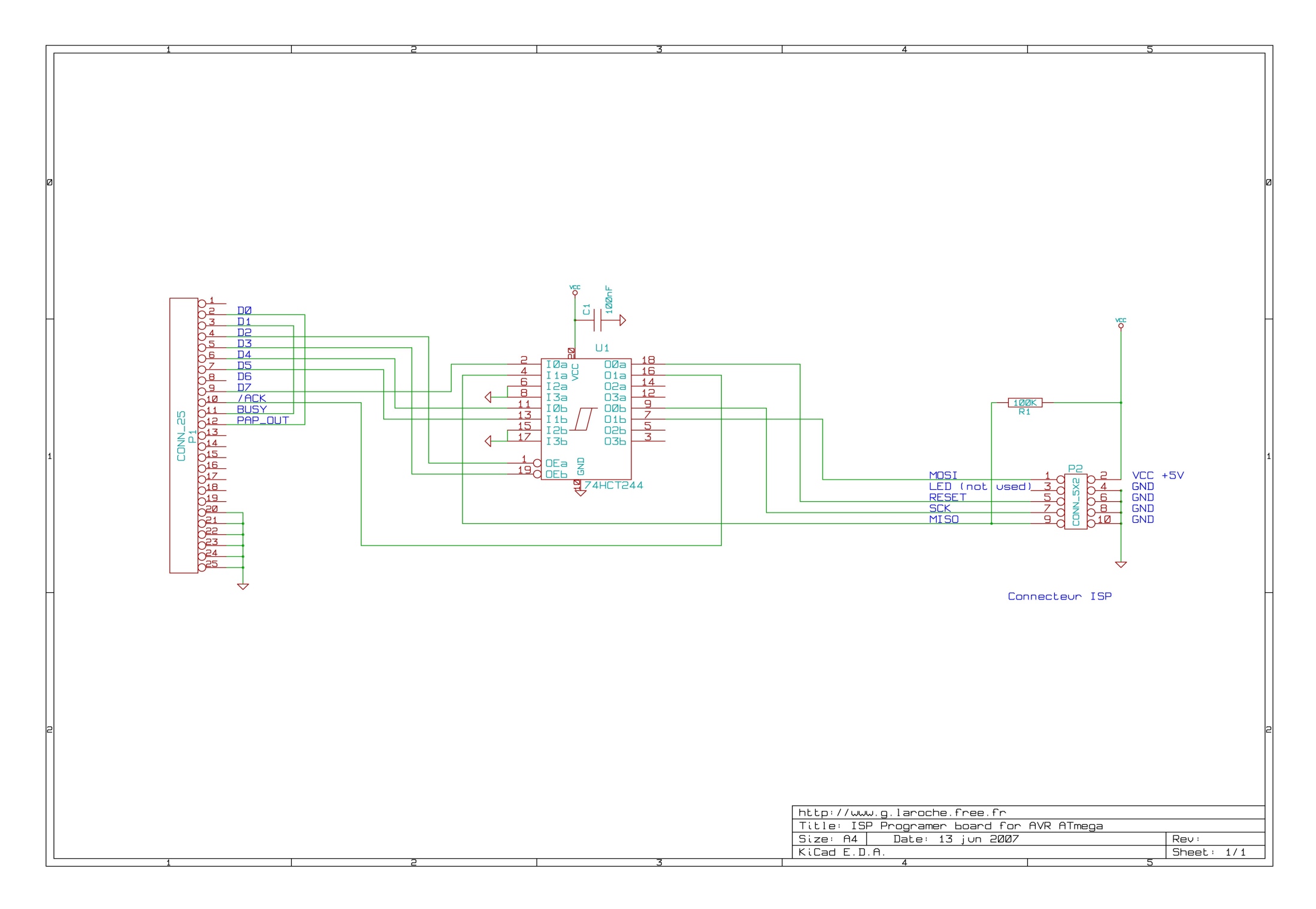

Diagram	PCB
Files for PROG_AVR board au format KiCAD: prog_avr_KiCAD.zip
complete folder (diagram + PCB ) PROG _AVR in a single PDF file : prog_avr_dossier.pdf





Board usage

Connect this board to the parallel printer PC connector and the ISP connector of the target board

Run PonyProg and select "parallel " and microcontroler type used (example : ATmega8).



Limits et evolutions

Hardware:

No board problem knows for this version
