µP AVR ATMega8 board for PLL MC145170 management
Traduire cette page
web site map

Summary



Board diagram and overview

Usage

Software description

Limits and evolutions





Board diagram and overview

This board allow to manage a FM transmitter including a Phase Locked Loop (PLL)on a serial bus (SPI) like a MC145170.
A curent frequency is memorised in EEPROM to configure PLL at power up.

Three auxiliairy frequencies are available for maintenance fonction and/or HF adjust.

A local interface include 4 keys and a LCD display enable to modify transmitter parameters.

This board can be completely drived from a serial link RS232 (19200 Bds,8b data,2b stop, no parity).

A temperature sensor enable to control working temperature and 2 analog input are used for HF power measure (Forward and Reflected).

Information about TOS protection activation is processed by this board to inform user (local and remote) on a TOS Alarm.

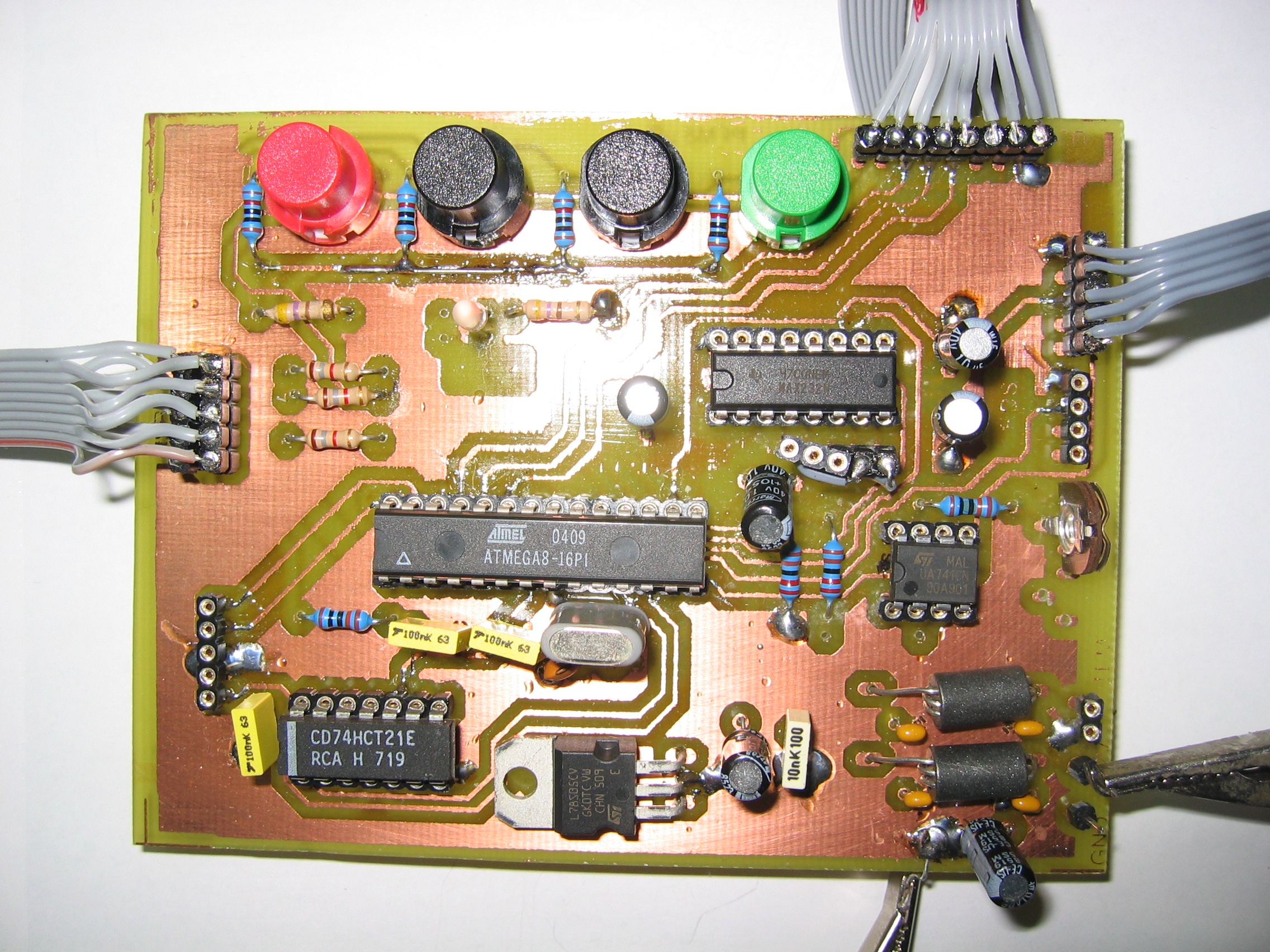

Click on reactive zone of following picture for more information(connectors, adjust,...)































Diagram and board are available in a zip file for Eagle 4.16 :

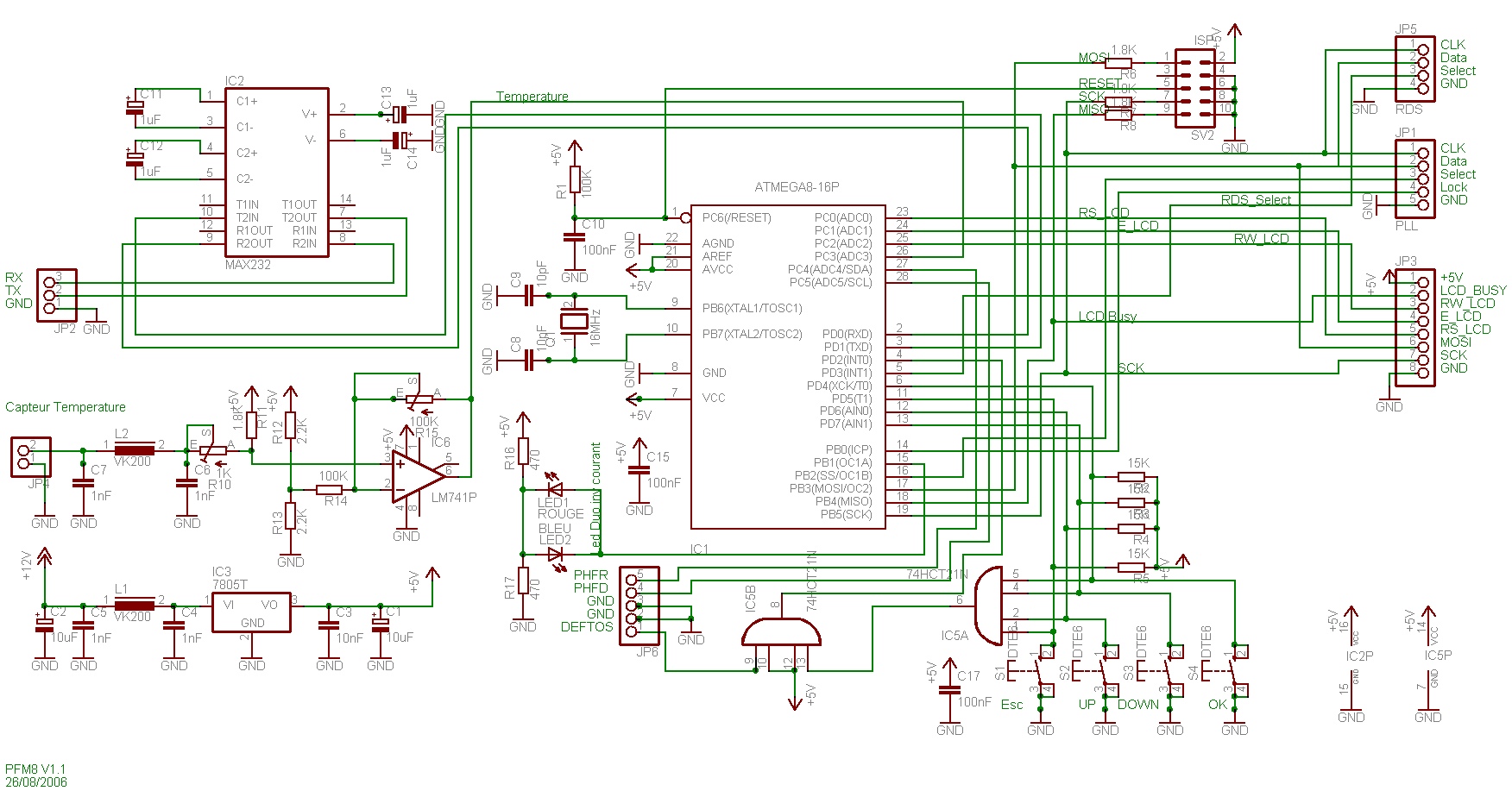

Diagram
Board

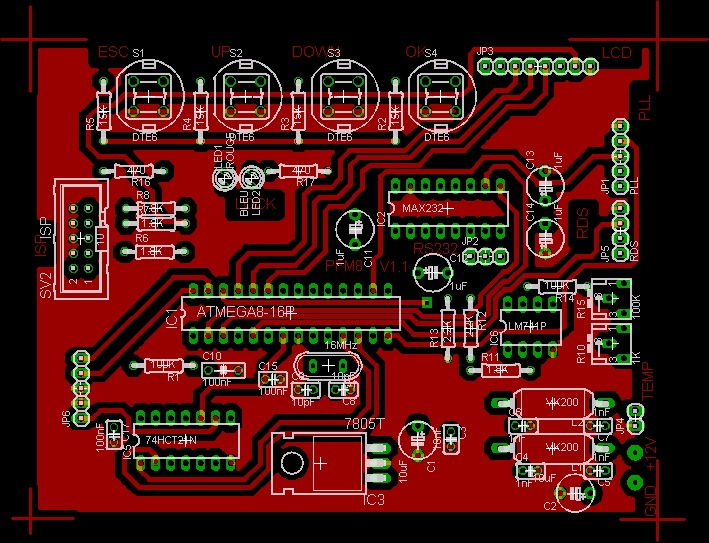

(top view)

Board

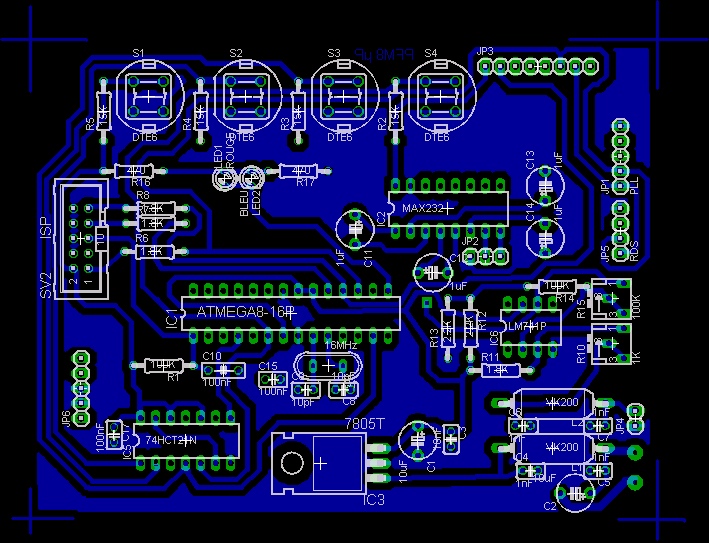

(bottom view)

click to enlarge
click to enlarge
click to enlarge

PFM8 board file for Eagle 4.16 : PFM8_eagle.zip





Board usage

V1.0 software usage

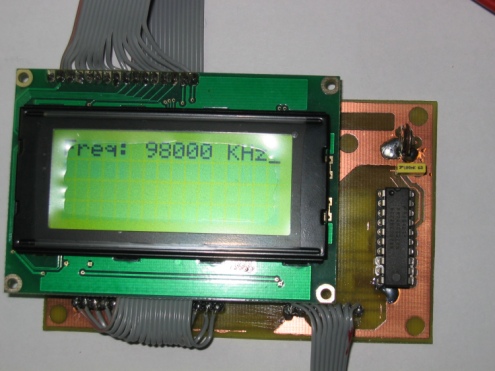

Local interface include a 1 raw LCD display and 4 keys using for the following functions :

STORE Store current frequency
UP Increase current frequency by 50KHz step
DOWN Decrease current frequency by 50KHz step
QUICK Quick change, select next auxiliary frequency among preset frequencies

LCD display frequecy setting on PLL (main frequency or auxiliary frequencies)

The board can be controled by an RS232 link with the following features :

Baud rate 19200 Bds
Data size 8bits
Stop bits 2 stop bits
Parity no parity
Protocol no protocol

An help menu displaying available commands can be obtain by the command : '?'

Syntax commands is defined by the following format :

"command separating_space parameter"

Thecommands are associated to a single ASCII Character (example 'M' (or 'm') for Memorise curent frequency )

At least one space is necessary to split the the command from parameter(s)

Frequnecies for parameters are in 10KHz example : '9800' for 98.00 MHz (98 000 KHz)

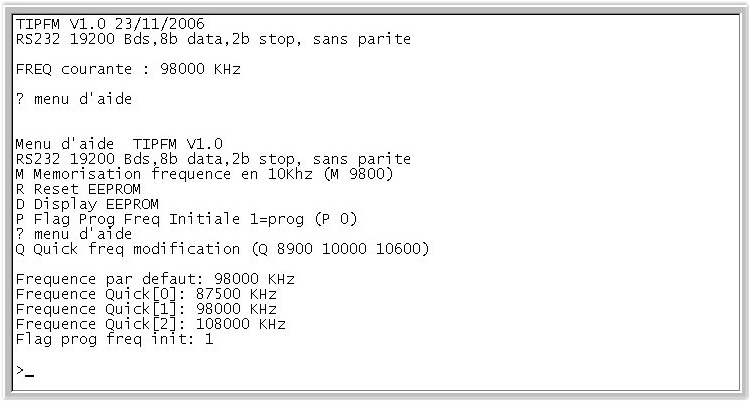

Screen capture showing initialisation message followed by '?' and 'D' commands.



Software description

Software Version TI_PFM V1.0

V1.0 TI_PFM software version is an operational version based on a test and integration version (Test and Integration PFM).

So this version is limited to a basic function : to manage PLL with a curent frequency.

Some fonctionalities are not implemented in this first version :



RS232 receiving is managed with an intterrupt and a 16 bytes buffer.

Timer 1 is used to refresh initialisation message, in this vrsion it is not used later

C langage is used for this software, athough it's not an object langage, object approach was used for design.

Binary code is available by clicking on the following link:

Binary code and sources files are available under GNU General Public License (GPL) :

binary file ".hex"
sources files





Limitation and evolutions

Software:

V1.0 software version is operational, but don't use all functionnalities of board (see Functionnalities implementations)

A fully version software using all board's possibilities is actually in study and will be soon available on this site.



Hardware:

No board problem knows for this version 1.0, however, some features will be optimised for the next version :
