Board diagram and overview

This board allow using an LCD display with the PilotFM board including a microcontroler ATmega8 describe in this page : PFM .

Click on reactive zone from following picture for more information(connectors, adjust,...)



































Diagram and board are available in a zip file for Eagle 4.16 :

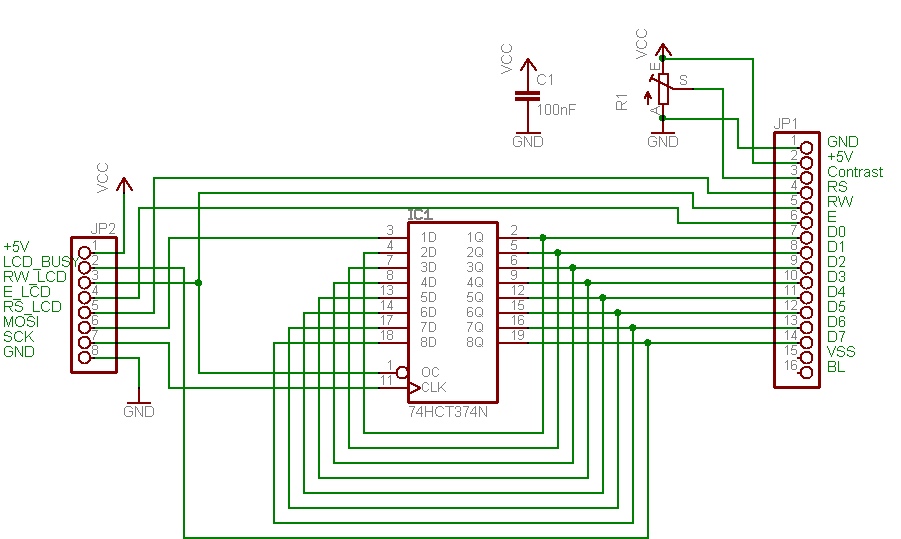

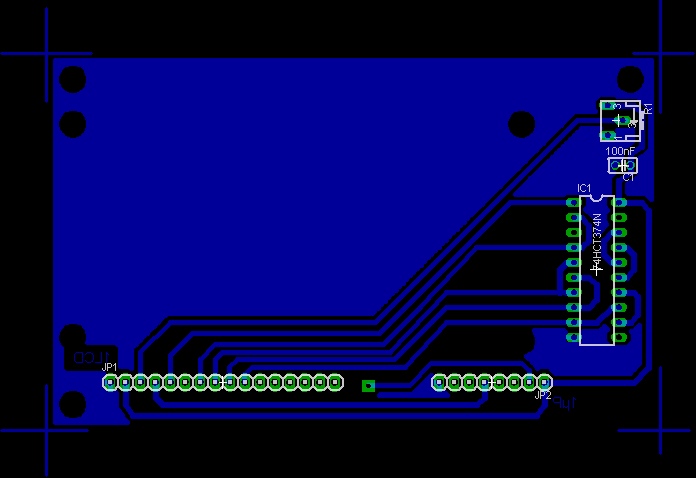

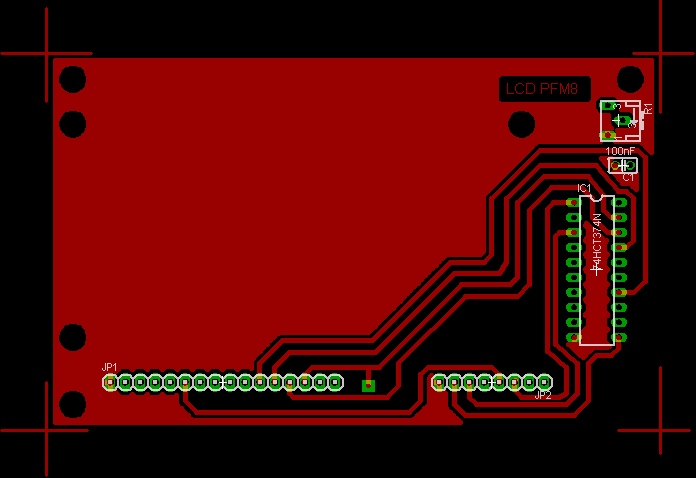

Diagram	Board (top view)	Board (bottom view)
PFM8 board file for Eagle 4.16: PFM_LCD_eagle.zip





Board usage

Connect this board to the µP AVR ATmega8 board and adjust contrast by adjustable resistor "R1"



Limitation and evolution

Hardware:

No limitaton or problem known for this board.
